Original price was: $356.00.$95.99Current price is: $95.99.
- Pentair part numbers 340030, EQ500, EQ 500
- 5 HP Commercial Pool Pump
- 230 Volt
- 6″ suction and 4″ discharge with strainer pot
- Nema Premium Grade Efficiency Motors
- Commercial grade, non-corrosive Plastic Parts for long life
- Self-priming under NSF standards
- NSF listed with Hair and Lint Strainer
- Drop-in replacement for C Series Pump
- Compatible with variable frequency drives
- Easy cleaning and serviceability
- Close coupled for quiet, stable flow operation
- Lightweight for easy, one-man installation
- Cam and Ramp locking ring design with clear lid
- Closed impeller for long life and durability
- Protecting Your Payment Information
- Top Quality Products
- Quality Meets Affordability
- Experience the Best Quality
Pentair EQ Series commercial pumps are designed for maximum efficiency and quiet operation in every detail. They are the only non-corrosive, all plastic pumps designed exclusively for the commercial pool and water applications market. EQ Series Impellers are manufactured for true breakthrough performance, allowing for lower loads and longer motor life.

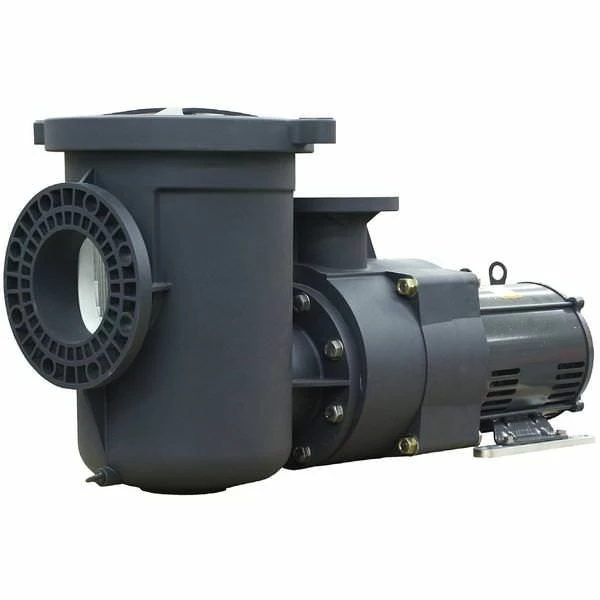

The Pentair EQ500 340030 Pump is a 5 Horsepower, 230 Volt single phase pump with a hair and lint strainer pot.
| Manufacturer | Pentair |
|---|---|

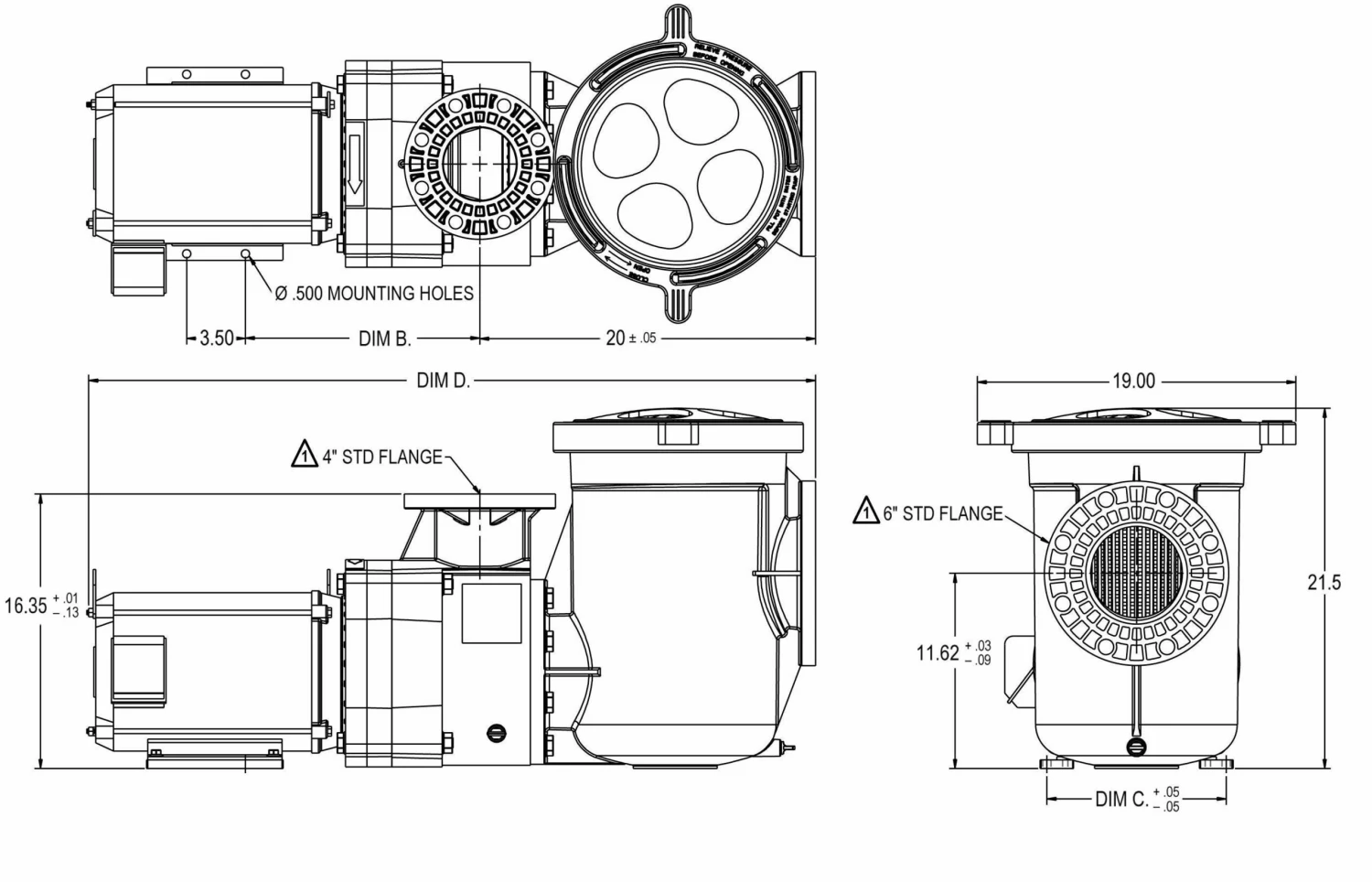

| Technical Specs | Part Number: EQ500 / 340030Voltage: 230 VoltPhase: 1 PhaseAmperage: 19.6 AmpsHorsepower: 5 HPRPM: 3500 RPMPump Body: Volute type, back pull-out design.Suction Port: 6" ANSI 150 bolted flange suction port.Discharge Port: 4" ANSI 150 bolted flange discharge port.Max Liquid Temperature: 104º FMax Ambient Air Temperature: 104º FMotor: Standard JM type open drip-proof, continuous duty.Frame Size: NEMA "C" flange. Shaft: 303 Stainless steel construction.Bearings: Double shielded, single row, deep groove type, permanently lubricated.Thermal Overload Protection: All models require external thermal overload protector. |
| Product Documentation | Pentair EQ Series Pump Parts |
| SKU | PAC-10-0030 |
| Manufacturer Part # | 340030 |
